OP-M620

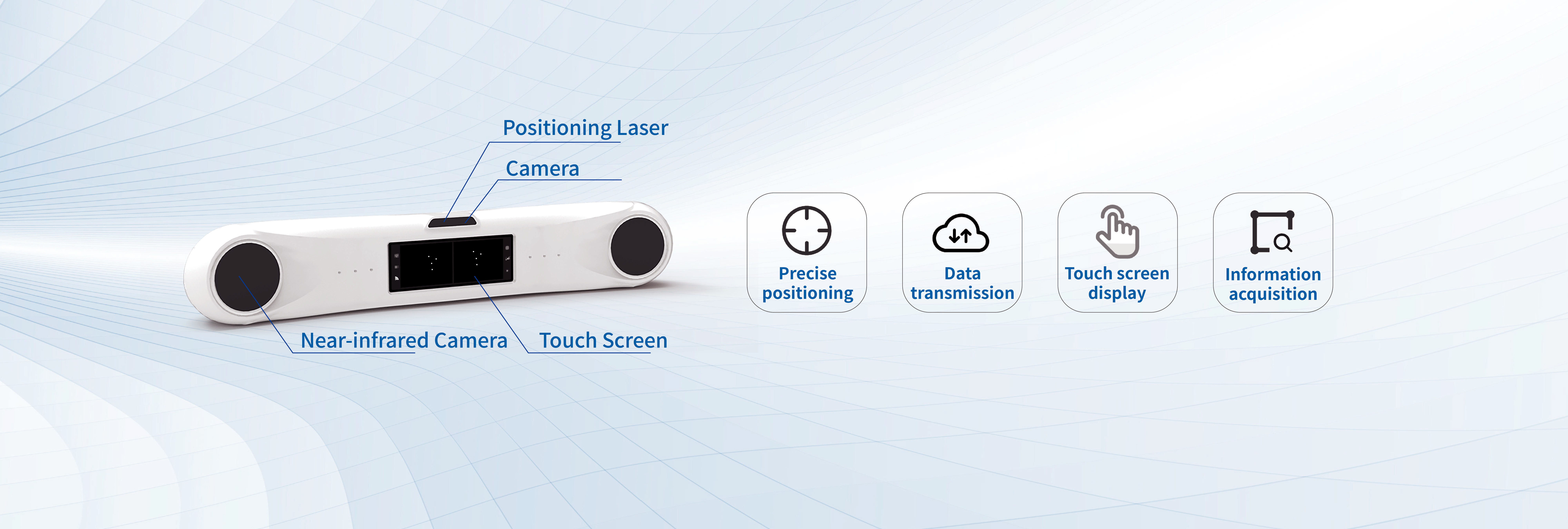

Precise positioning ｜ Data transmission ｜ Touch screen display ｜ Information acquisition

AimPosition OP-M620 is an optical navigation device for tracking and positioning based on binocular stereo vision. AimPosition OP-M620 is the only AIMposition developed and successfully mass-produced in China. The system is built on FPGA technology platform, which improves the high synchronization and stability of binocular vision image acquisition. The tool position can be dynamically tracked in real time in a specific three-dimensional space with tracking accuracy up to 0.12 mm.

Specifications

Sizeparameter
Positioning accuracy 0.12mm (RMS)
The sampling frequency is 60Hz
Hardware ports Ethernet, USB, serial port, 12V power port
Transmission rate Ethernet: 1000Mbps; USB 2.0: 480Mbps; Wi-Fi: 460.8Kbps
Data type Color image, binocular image, marking point 3D coordinates, tool 6D pose
Marking point Positioning marking point type: active, passive, maximum number of marking points: 200 marking points
API function 1, API control function, easy to use; 2. API use cases
Instrument size 608.5mm×118.34mm×103.5mm (L × W × H)

Specifications

Field of view
